ANSI SCH80
|
Size |
D |
Tolerance |
t(min) |
Tolerance |
D1 |
|
1/2″ |
21.34 |
±0.10 |
3.73 |
+0.51 |
13.84 |
|
3/4″ |
26.67 |
±0.10 |
3.91 |
+0.51 |
18.88 |
|
1″ |
33.4 |
±0.13 |
4.55 |
+0.53 |
24.3 |
|
1-1/4″ |
42.16 |
±0.13 |
4.85 |
+0.58 |
32.5 |
|
1-1/2″ |
48.26 |
±0.15 |
5.08 |
+0.61 |
38.14 |
|
2″ |
60.33 |
±0.15 |
5.54 |
+0.66 |
49.22 |
|
2-1/2″ |
73.03 |
±0.18 |
7.01 |
+0.84 |
58.98 |
|
3″ |
88.9 |
±0.20 |
7.62 |
+0.91 |
73.66 |
|
4″ |
114.3 |
±0.23 |
8.56 |
+1.02 |
97.18 |
|
5″ |
141.3 |
±0.25 |
9.52 |
+1.14 |
122.26 |
|
6″ |
168.28 |
±0.28 |
10.97 |
+1.32 |
146.34 |
|
8″ |
219.08 |
±0.38 |
12.70 |
+1.52 |
193.68 |
|
10″ |
273.05 |
±0.38 |
15.06 |
+1.80 |
242.98 |
|
12″ |
323.85 |
±0.38 |
17.45 |
+2.08 |
289 |
|
14″ |
355.60 |
±0.38 |
19.05 |
+2.29 |
317.5 |
|
16″ |
406.40 |
±0.48 |
21.41 |
+2.57 |
363.58 |
|
18″ |
457.20 |
±0.48 |
23.80 |
+2.84 |
409.6 |
|
20″ |
508.00 |
±0.58 |
26.19 |
+3.15 |
455.62 |
|
24″ |
609.60 |
±0.79 |
30.94 |
+3.17 |
547.72 |
|
Size |
D |
Tolerance |
t(min) |
Tolerance |
D1 |
|
1/2″ |
21.34 |
±0.10 |
2.77 |
+0.51 |
15.76 |
|
3/4″ |
26.67 |
±0.10 |
2.87 |
+0.51 |
20.96 |
|
1″ |
33.40 |
±0.13 |
3.38 |
+0.51 |
26.64 |
|
1-1/4″ |
42.16 |
±0.13 |
3.56 |
+0.51 |
35.08 |
|
1-1/2″ |
48.26 |
±0.15 |
3.68 |
+0.51 |
40.94 |
|
2″ |
60.33 |
±0.15 |
3.91 |
+0.51 |
52.48 |
|
2-1/2″ |
73.03 |
±0.18 |
5.16 |
+0.61 |
62.68 |
|
3″ |
88.90 |
±0.20 |
5.49 |
+0.66 |
77.92 |
|
4″ |
114.30 |
±0.23 |
6.02 |
+0.71 |
102.26 |
|
5″ |
141.30 |
±0.25 |
6.55 |
+0.79 |
128.2 |
|
6″ |
168.28 |
±0.28 |
7.11 |
+0.86 |
154.08 |
|
8″ |
219.08 |
±0.38 |
8.18 |
+0.99 |
202.74 |
|
10″ |
273.05 |
±0.38 |
9.27 |
+1.12 |
254.51 |
|
12″ |
323.85 |
±0.38 |
10.31 |
+1.24 |
303.23 |
|
14″ |
355.60 |
±0.38 |
11.10 |
+1.35 |
333.40 |
|
16″ |
323.85 |
±0.48 |
12.70 |
+1.52 |
381.00 |
|
18″ |
457.20 |
±0.48 |
14.27 |
+1.70 |
428.66 |
|
20″ |
508.00 |
±0.58 |
15.06 |
+1.80 |
477.34 |
|
24″ |
609.60 |
±0.79 |
17.45 |
+2.08 |
574.70 |

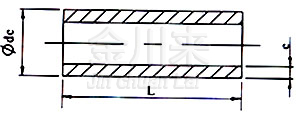

DIN:GB
|
de |
壁厚e(min) |
L |
|||
|
化工用 |
給水用 |
||||
|
PN1.0 |
PN1.6 |
PN1.0 |
PN1.6 |
||
|
20 |
2.0 |
2.3 |
- |
2.0 |
4M |
|
25 |
2.0 |
2.8 |
- |
2.0 |
|
|
32 |
2.4 |
3.6 |
- |
2.4 |
|
|
40 |
3.0 |
4.5 |
2.0 |
3.0 |
|
|
50 |
3.7 |
5.6 |
2.4 |
3.7 |
|
|
63 |
4.7 |
7.1 |
3.0 |
4.7 |
|
|
75 |
5.5 |
8.4 |
3.6 |
5.6 |
|
|
90 |
6.6 |
10.1 |
4.3 |
6.7 |
|
|
110 |
8.1 |
12.3 |
4.8 |
7.2 |
|
|
140 |
10.3 |
15.7 |
6.1 |
8.3 |
|
|
160 |
11.8 |
17.9 |
7.0 |
9.5 |
|
|
225 |
16.6 |
25.1 |
9.8 |
13.4 |
6M |
|
250 |
18.4 |
27.9 |
10.9 |
14.8 |
|
|
315 |
23.2 |
- |
13.7 |
18.7 |
|
