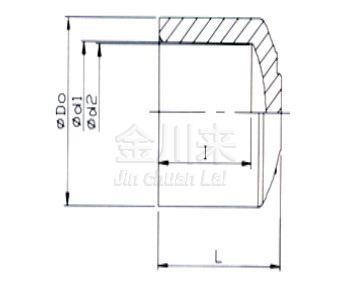

ANSI SCH80
|
Size |
Do |
d1 |
d2 |
I |
L |
|
1/2″ |
30 |
21.54 |
21.23 |
24.22 |
31 |
|
3/4″ |
36.83 |
26.87 |
26.57 |
27.4 |
35 |
|
1″ |
45.5 |
33.66 |
33.27 |
30.58 |
40.5 |
|
1-1/4″ |
55 |
42.42 |
42.04 |
34.75 |
46 |
|
1-1/2″ |
61.5 |
48.56 |
48.11 |
37.93 |
50.5 |
|
2″ |
75 |
60.63 |
60.17 |
41.1 |
56 |
|
2-1/2″ |
89 |
73.38 |
72.85 |
47.45 |
65.5 |
|
3″ |
106 |
89.31 |
88.70 |
50.63 |
70 |
|
4″ |
133 |
114.80 |
114.10 |
60.15 |
82.5 |
|
5″ |
163.5 |
141.81 |
141.00 |
69.7 |
108 |
|
6″ |
192 |
168.83 |
168 |
79.2 |
110.5 |
|
8″ |
246 |
219.84 |
218.69 |
104.6 |
143 |
|
10″ |
307 |
273.82 |
272.67 |
135 |
194 |
|
12″ |
366 |
324.61 |
323.47 |
160 |
235.5 |
|
14″ |
395 |
356.49 |
354.84 |
169 |
226 |
|
16″ |
452 |
407.54 |
405.67 |
218.5 |
258.5 |
GB PN10/DIN PN16
|
Size |
∮d1 |
∮d2 |
∮D |
I |
L |
|
1/2″(15mm) |
20.3 |
19.9 |
26 |
16 |
21.74 |
|
3/4″(20mm) |
25.3 |
24.9 |
32 |
19 |
26.26 |
|
1″(25mm) |
32.3 |
31.9 |
41 |
22 |
30.42 |
|
1-1/4″(32mm) |
40.3 |
39.9 |
50.5 |
26 |
36.24 |
|
1-1/2″(40mm) |
50.3 |
49.9 |
63.2 |
31 |
44.26 |
|
2″(50mm) |
63.3 |
62.9 |
79.5 |
38 |
54.23 |
|
2-1/2″(65mm) |
75.35 |
74.9 |
93 |
44 |
64.99 |
|
3″(80mm) |
90.5 |
89.9 |
112 |
51 |
74.67 |
|
4″(100mm) |
110.6 |
109.9 |
133.1 |
61 |
85.85 |
|
5″(125mm) |
140.85 |
140.05 |
163 |
77 |
107.9 |
|
6″(150mm) |
160.85 |
160.05 |
186 |
86 |
121.9 |
|
8″(200mm) |
226.25 |
225.05 |
261 |
117 |
168 |
|
10″(250mm) |
251.45 |
250.05 |
290 |
131 |
187.7 |
|
12″(300mm) |
316.85 |
315.05 |
364 |
164 |
230.1 |
